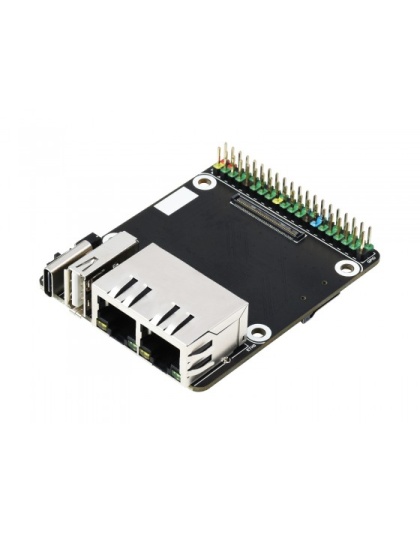

Mini Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4
WaveShare
R520.00 Inc VAT
R656.90

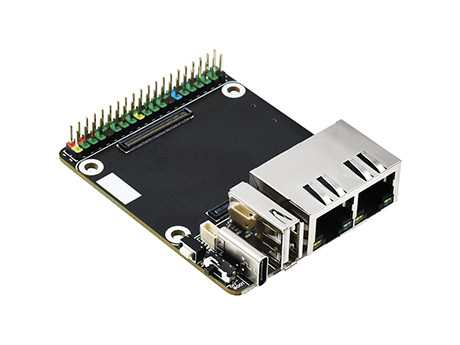

Dual Gigabit Ethernet Base Board For CM4
Mini, Practical And Neat
Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End
Dual Gigabit Ethernet Base Board
Specifications
- CM4 SOCKET: suitable for all variants of Compute Module 4
- NETWORKING" Dual Gigabit Ethernet RJ45 connectorUSBUSB 2.0 Port
- PIN HEADER: Raspberry Pi 40PIN GPIO header
- STORAGE: TF card socket for Compute Module 4 Lite (without eMMC) variants
- FAN HEADER: 4-wire SH1.0 port, allows speed adjustment and measurement, 5V

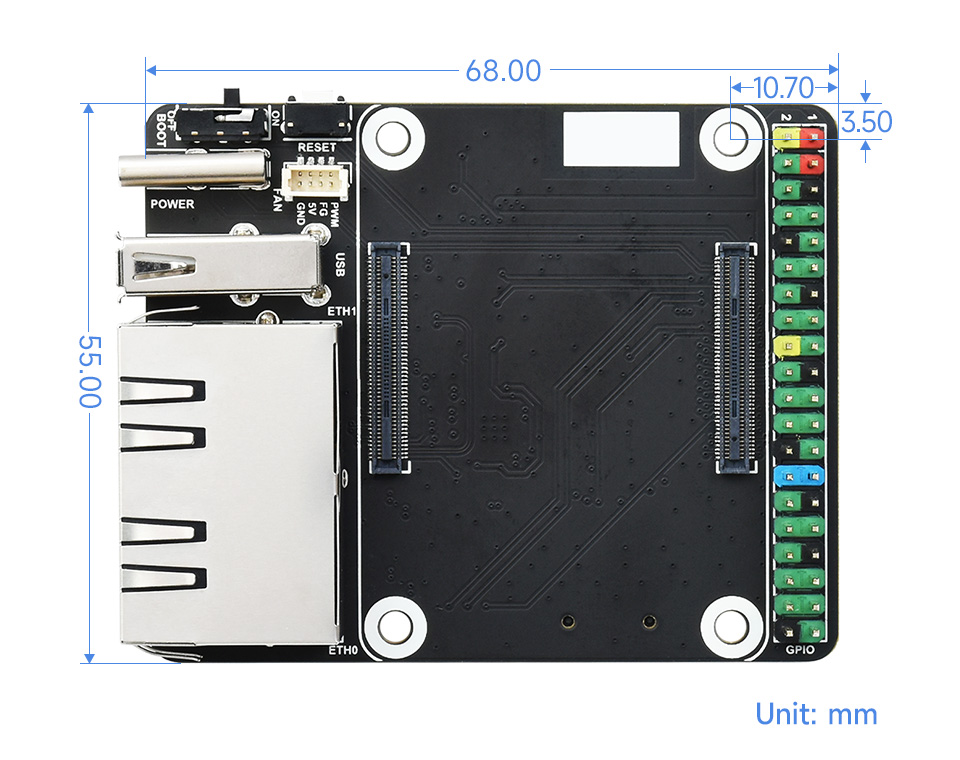

- POWER INPUT: 5V, Type-C interfaceDIMENSIONS55.0 × 68.0mm

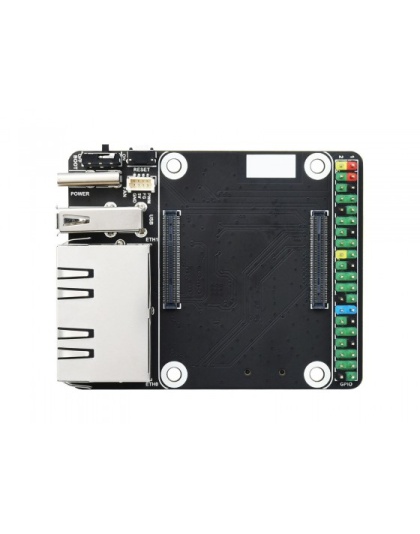

Connecting With Compute Module 4
Standard CM4 Socket And 40PIN GPIO Header
Suitable For Compute Module 4 Lite/EMMC Series Module
Rich Interfaces

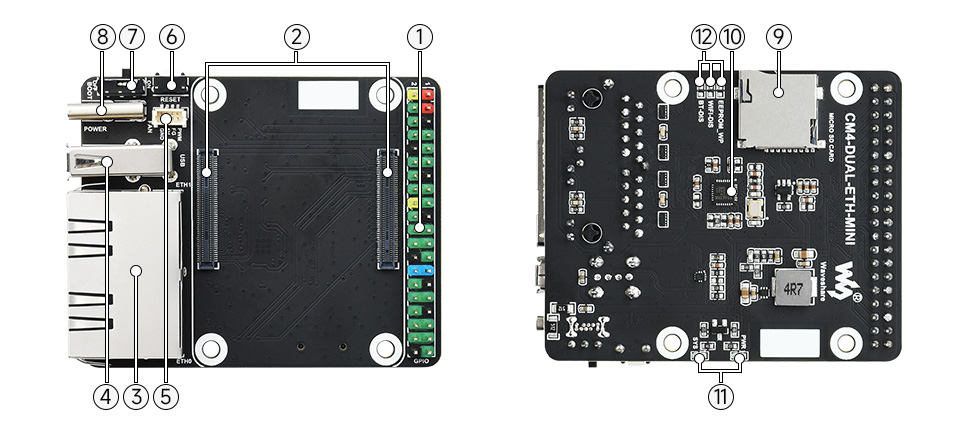

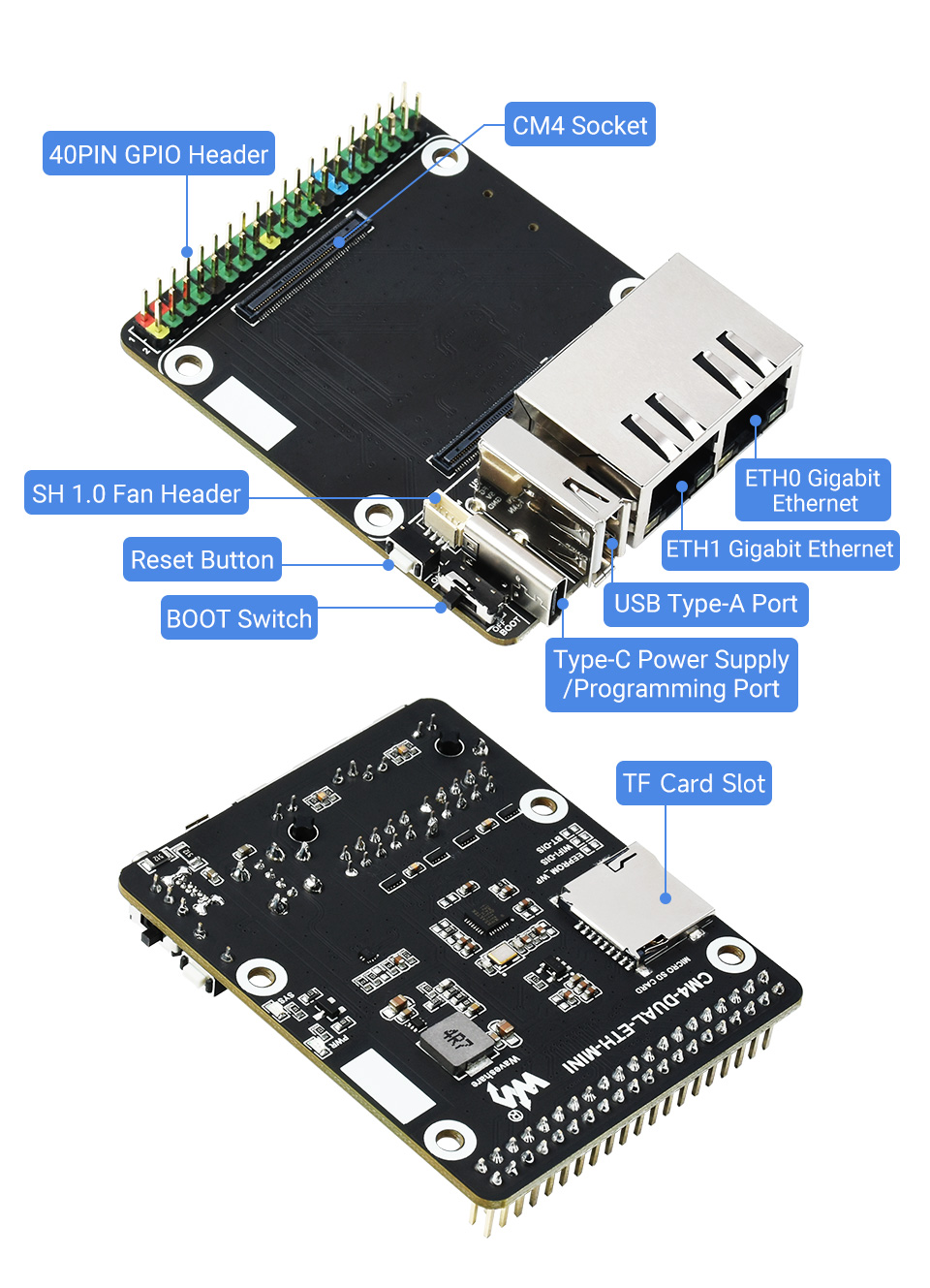

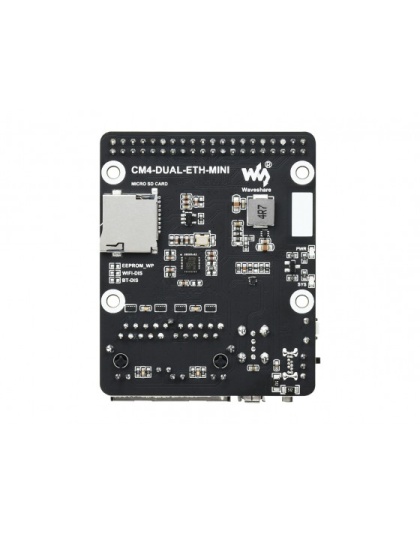

What's On Board
- 40PIN GPIO header
for connecting sorts of HAT - CM4 Socket
suitable for all variants of Compute Module 4 - RJ45 Dual Gigabit Ethernet Port
Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible
ETHERNET 0: CM4 original network port
ETHERNET 1: PCIe extended network port - USB 2.0 Type A port
for connecting sorts of USB devices - FAN header
for connecting cooling fan, allows speed adjustment and measurement - Reset button
- Boot switch
ON: CM4 would be booted from USB-C interface
OFF: CM4 would be booted from eMMC or TF car
- Type-C port
5V/2.5A power supply, or used for eMMC programming - TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY) - RTL8111H
Gigabit NIC chip - Indicator
PWR: indicating the power supply status of Raspberry Pi
SYS: indicating the working status of Raspberry Pi - SYSTEM switch
EEPROM_WP: Prevent EEPROM from being overwritten
WiFi_DIS: WiFi disabled, only for CM4 version with wireless
BT_DIS: Bluetooth disabled, only for CM4 version with wireless
What's in the box?
1 x Mini Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4
Resources
WIKI: www.waveshare.com/wiki/CM4-DUAL-ETH-MINI
- Availability: 3 In Stock
- Model: Ethernet Base CM4
- SKU: WS22360
-
