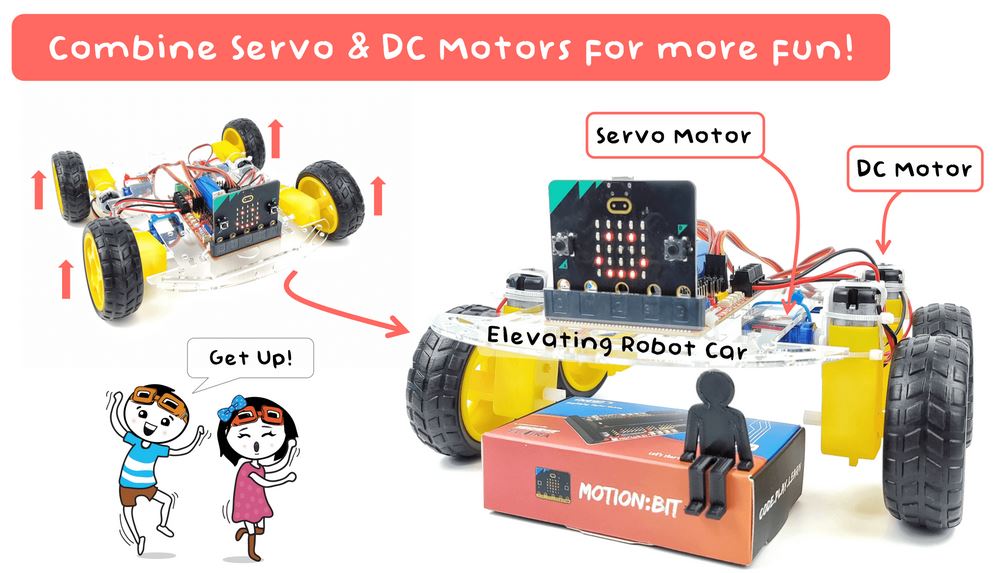

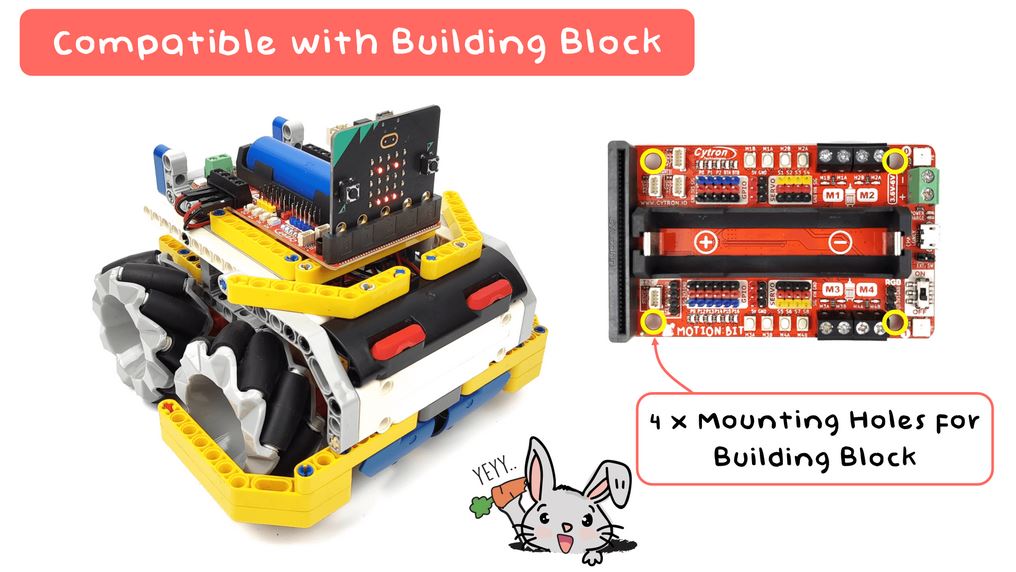

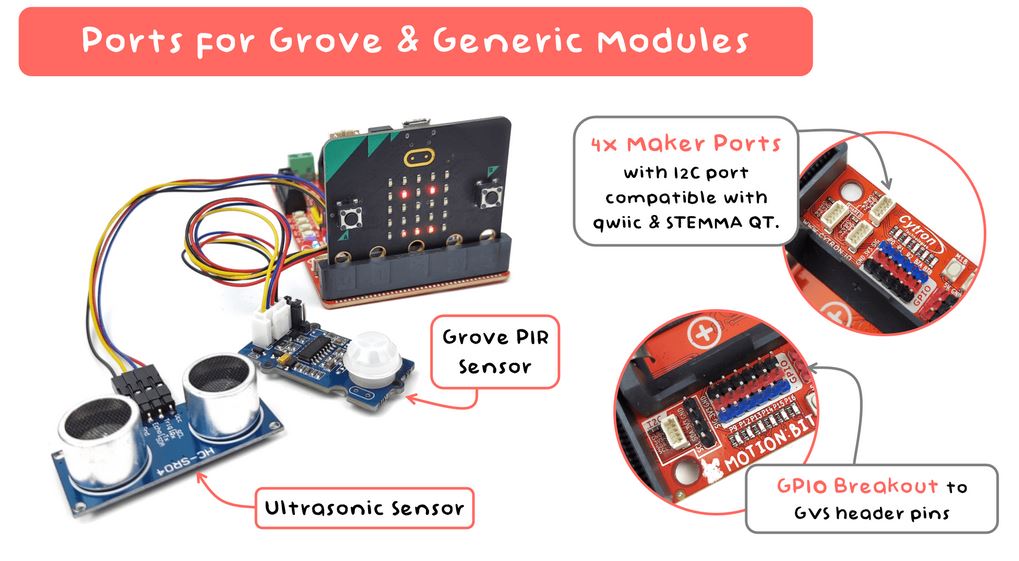

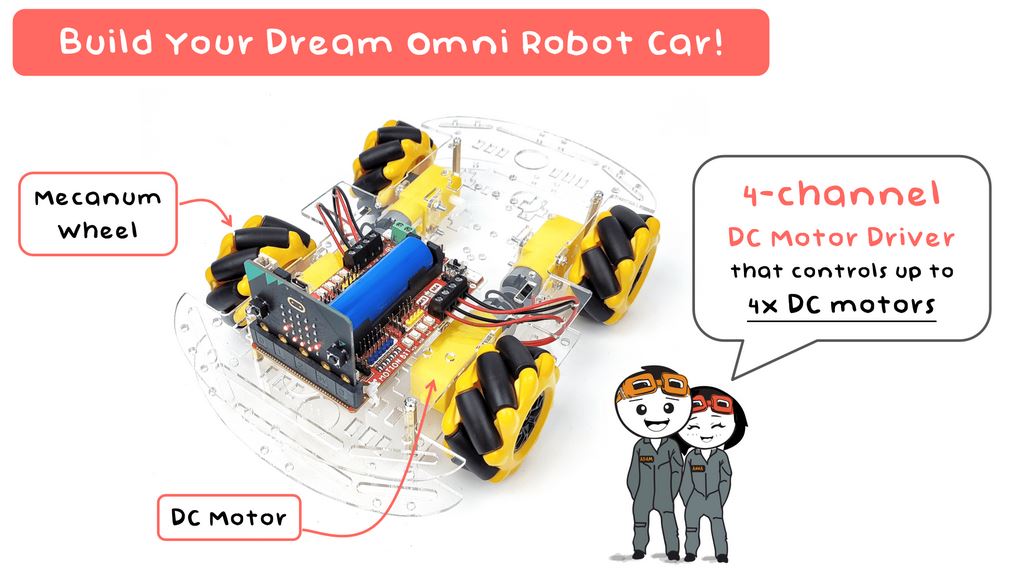

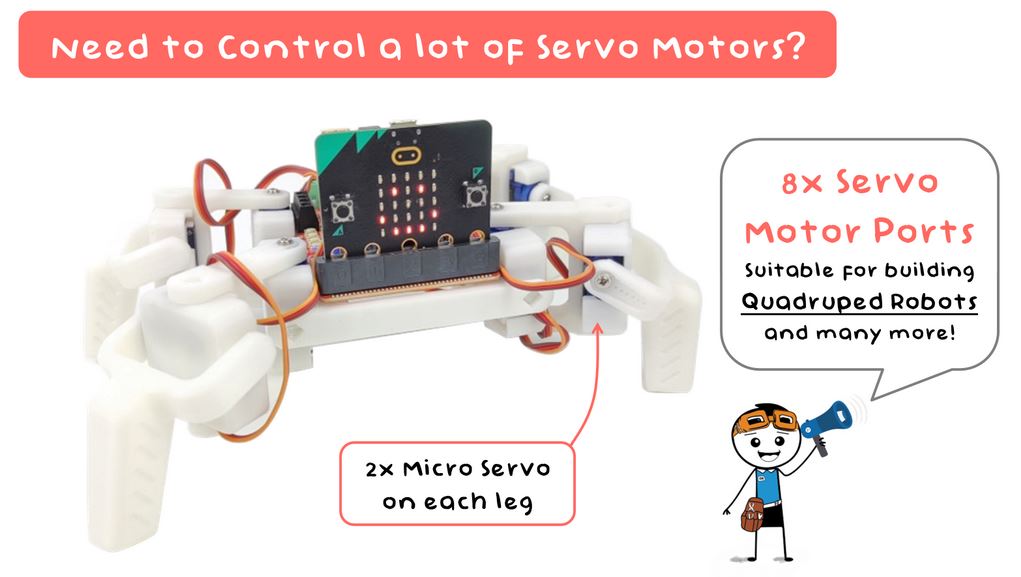

Looking for a suitable micro:bit expansion board to build a robot with DC Motors and Servo Motors?

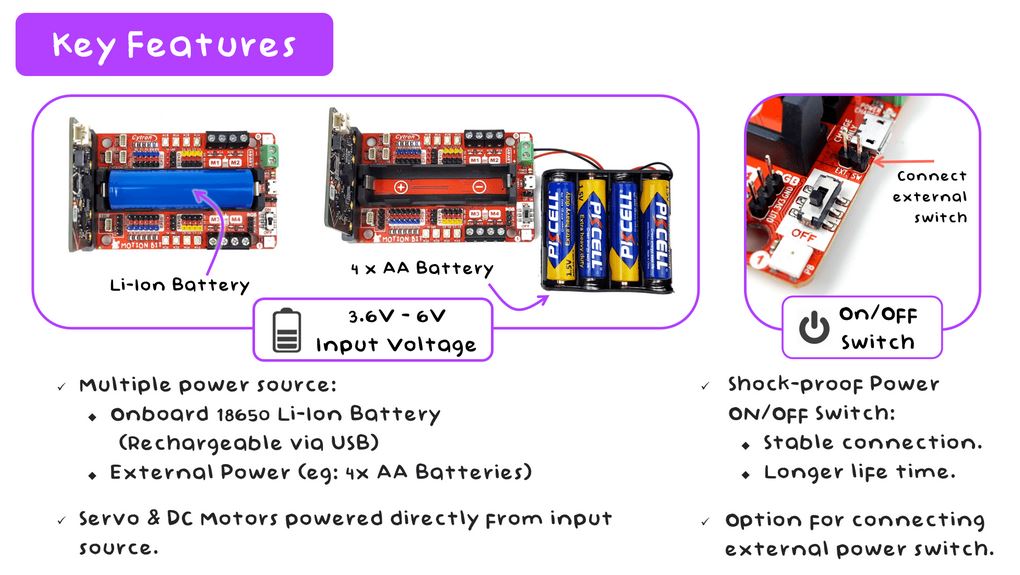

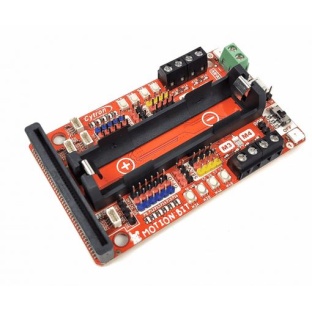

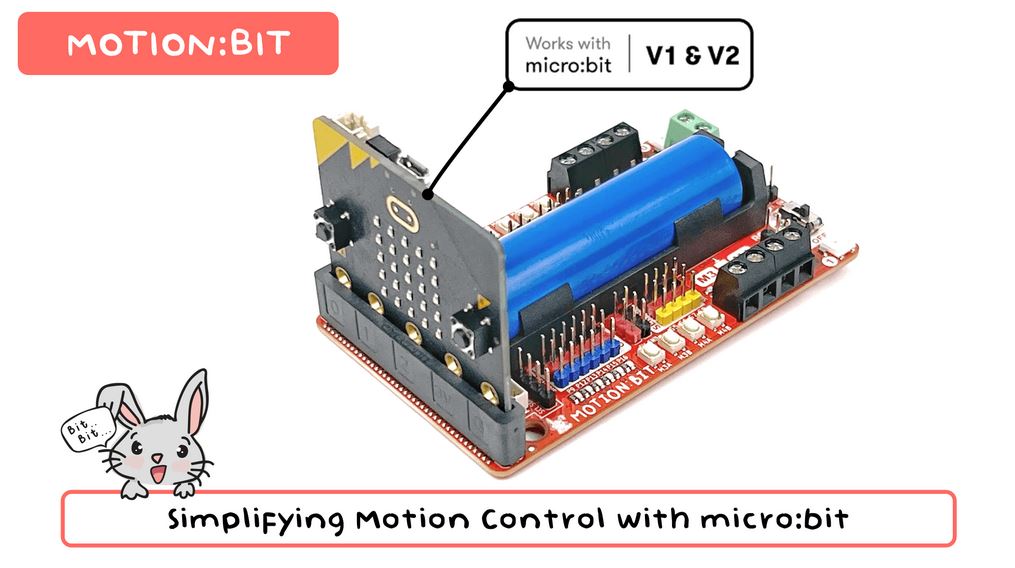

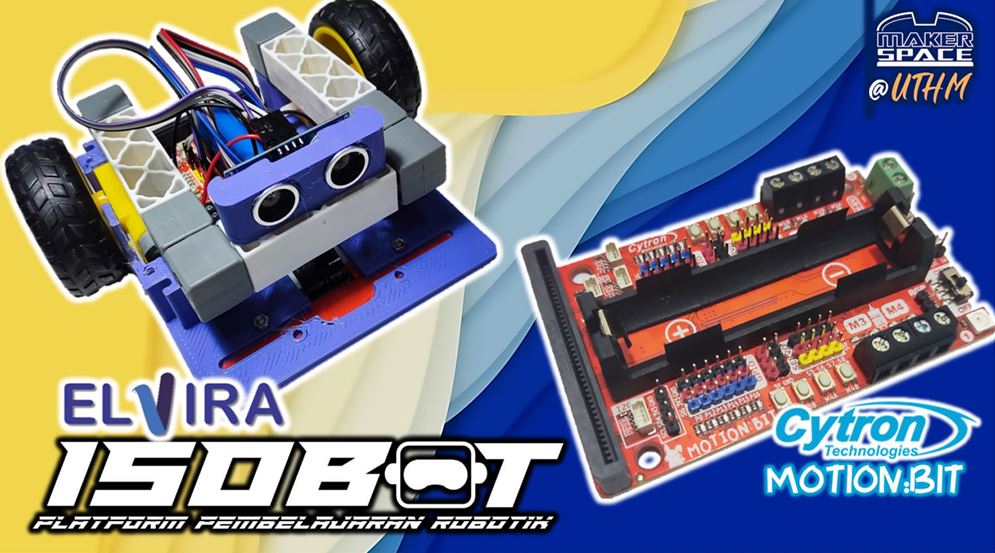

Introducing the new member to our family - MOTION:BIT.

This is a brainchild of makerspace.UTHM & Cytron Technologies, in collaboration with ISOBOT and Elvira Systems.

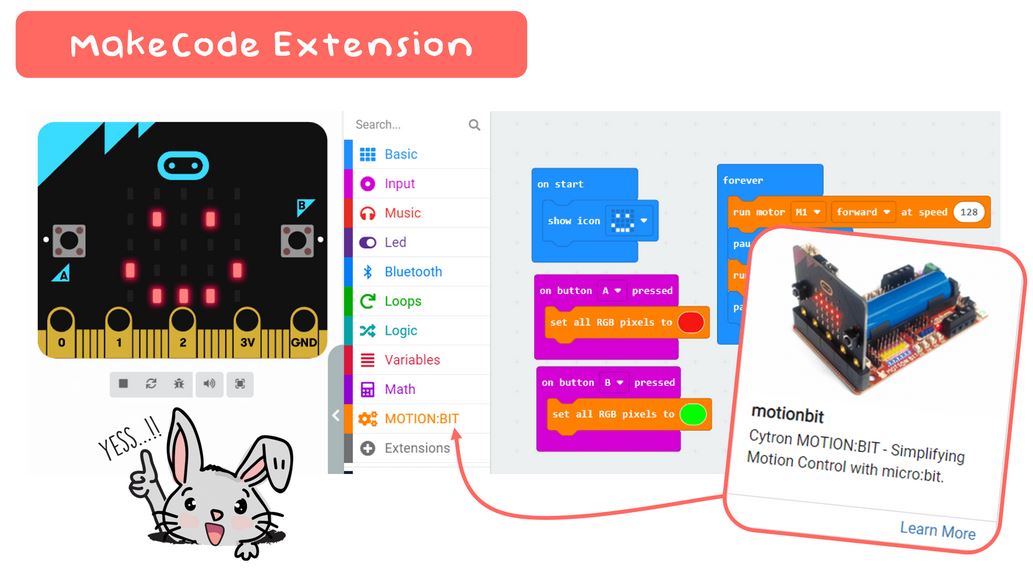

Program your MOTION:BIT with Microsoft MakeCode Editor graphical programming interface. Just install MOTION:BIT MakeCode Extension and you may start to code your projects. If you’re a beginner, you can start with the block programming mode; simply drag, drop & snap the coding blocks together. For more advanced users, you can easily switch into JavaScript or Python mode on MakeCode Editor for text-based programming.

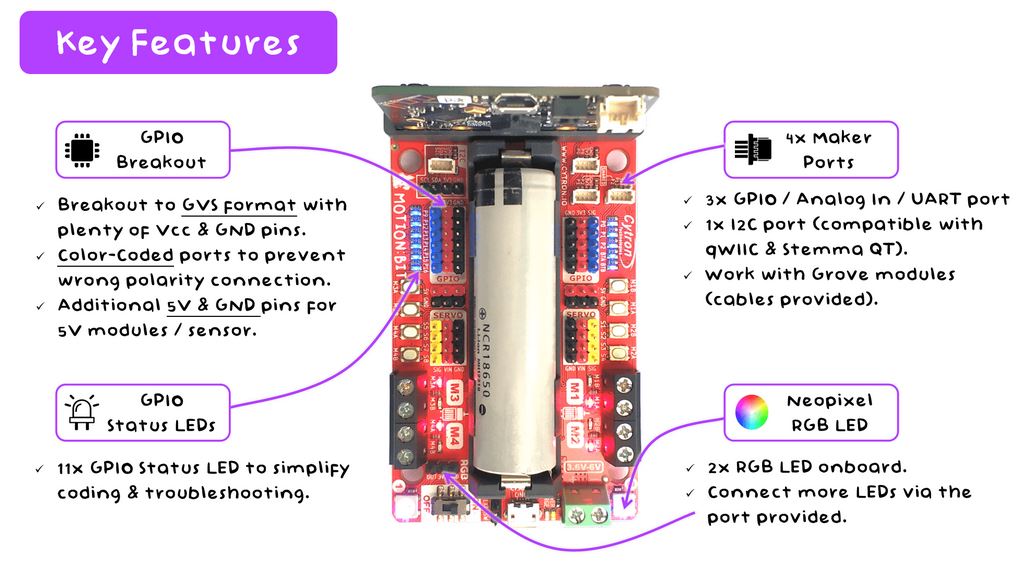

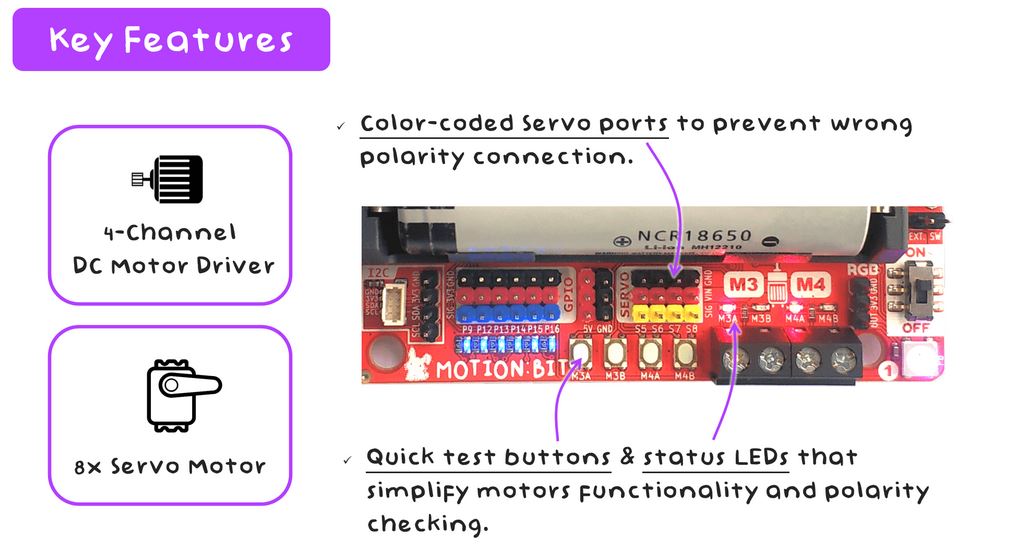

Features

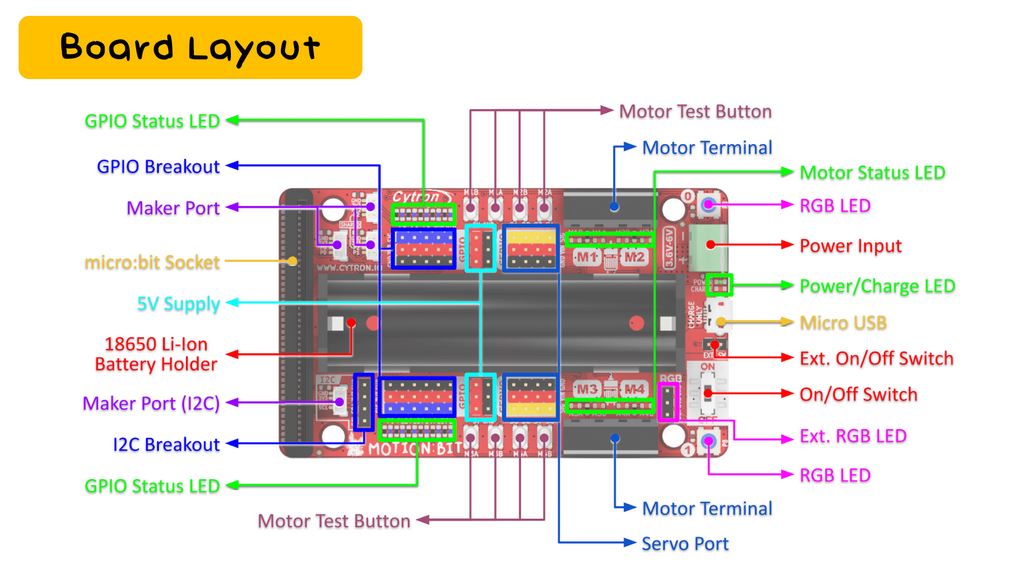

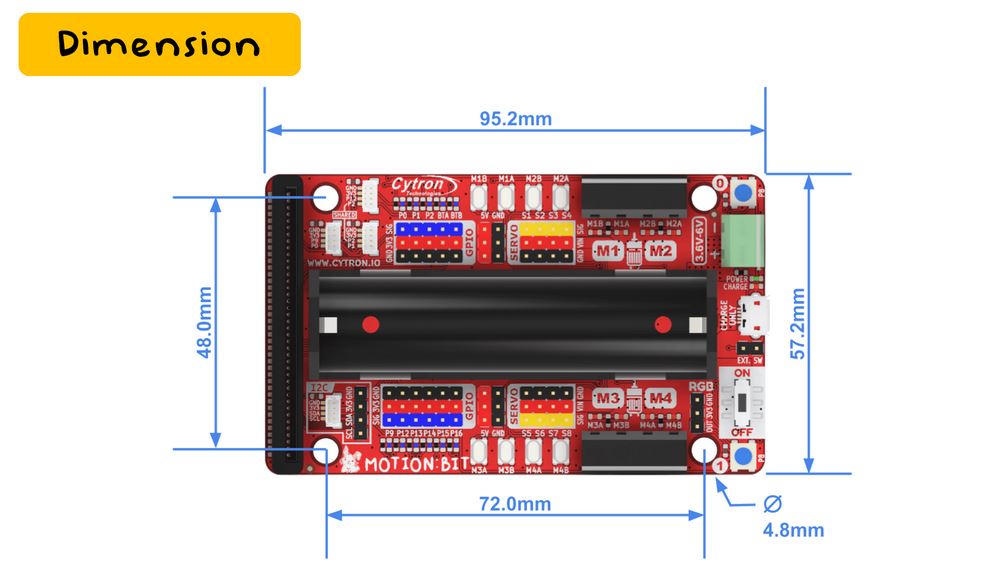

Board Layout

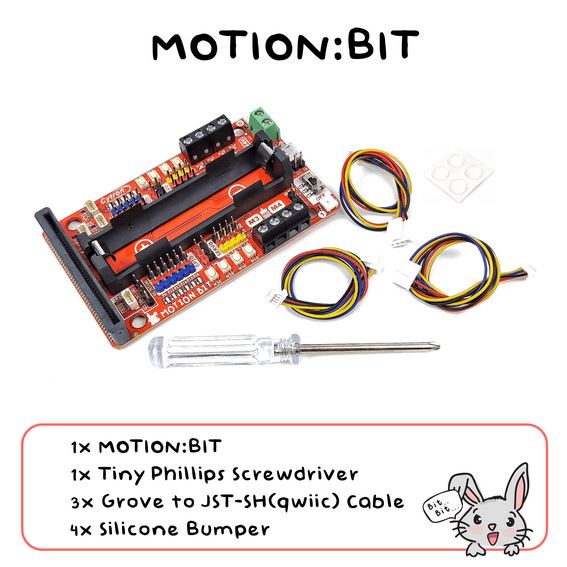

What's in the box?

1 x MOTION:BIT
1 x Tiny Phillips Screwdriver
3 x Grove to JST-SH(qwiic) Cable
4 x Silicone Bumper


You might also need....

You'll find our battery selection here
Looking for a suitable micro:bit?
and a USB cable

Including 15 Common Modules Such As LED, Button, Buzzer, Etc.
Out Of The Box As A Whole Kit, Or Can Be Separated To Use Independently

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
• All-in-one design, all modules are connected to Pico via PCB castellated holes, no soldering or wiring required.
• Including 15 common modules such as LED, button, buzzer, etc., which can be separated to use independently
• Comes with online development resources and manual (examples for Raspberry Pi Pico C/C++ and MicroPython)

Note: the PH2.0 cables are required for the connection with pico after the modules are separated.

MODEL	NOTE
Pico-Sensor-Kit-B	the Sensor Kit only

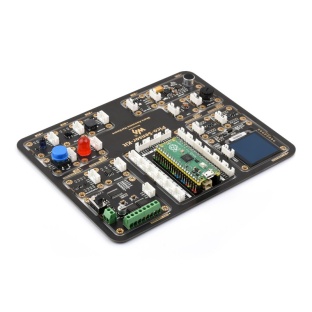

Based On Raspberry Pi Pico

Suitable For Raspberry Pi Pico Series Boards, Adapting 40PIN Color-Coded Header

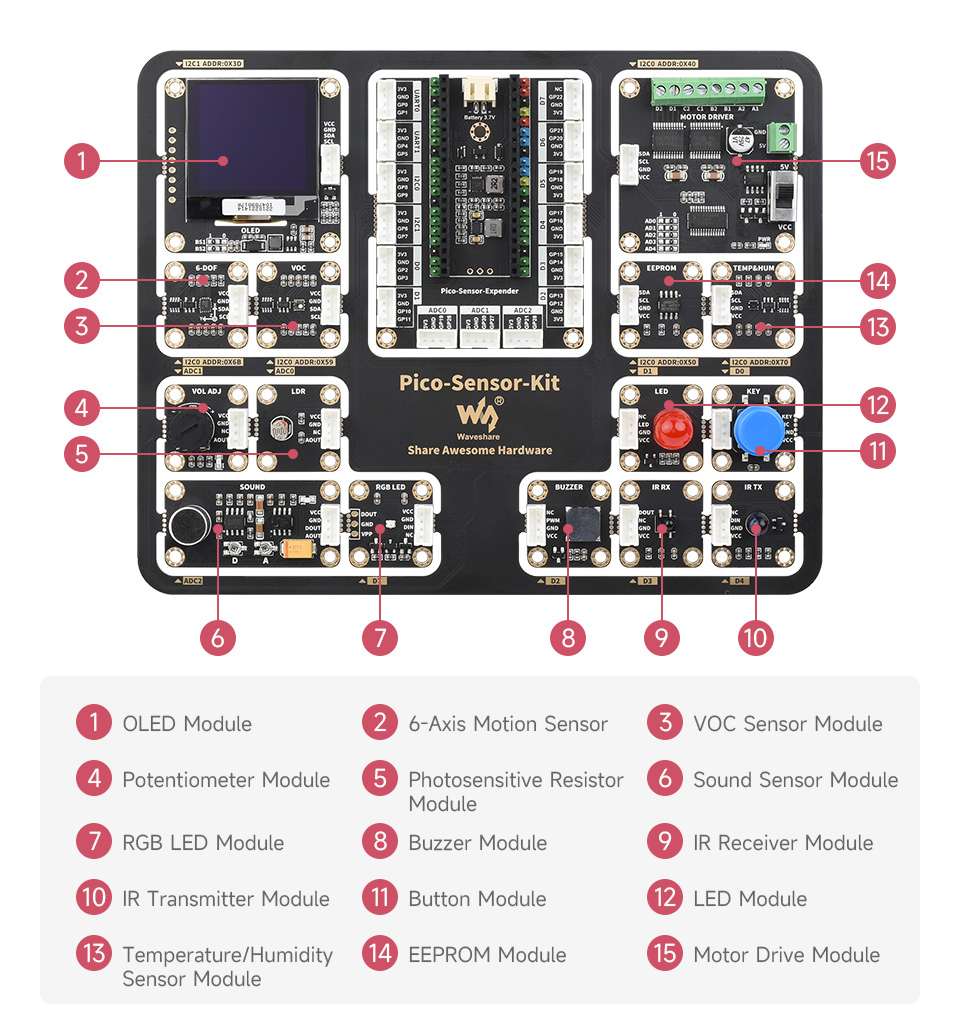

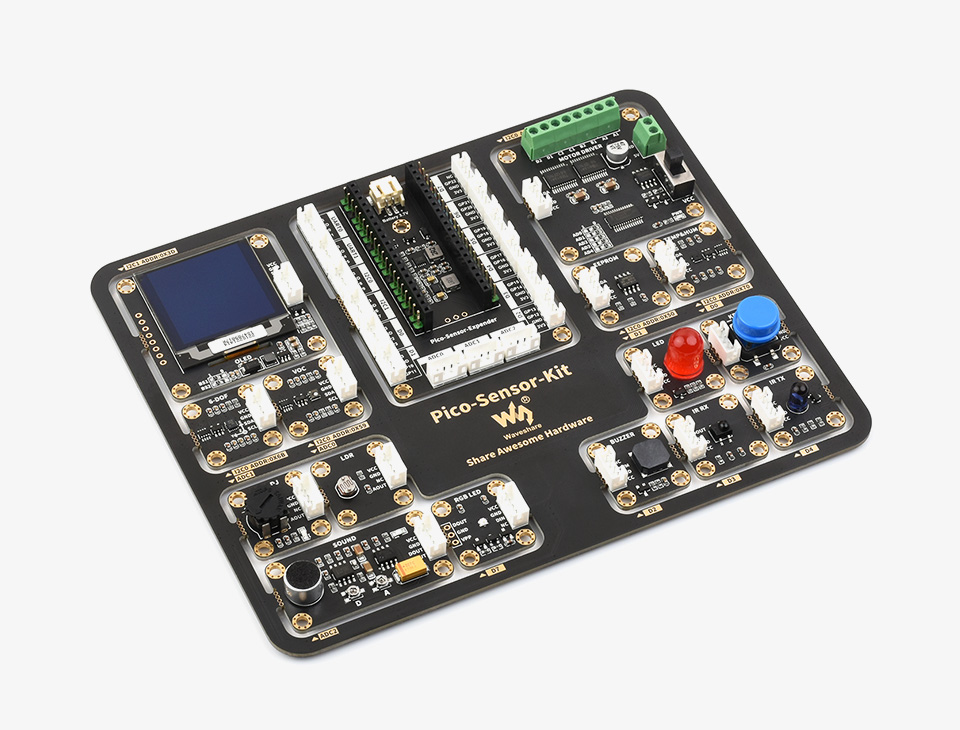

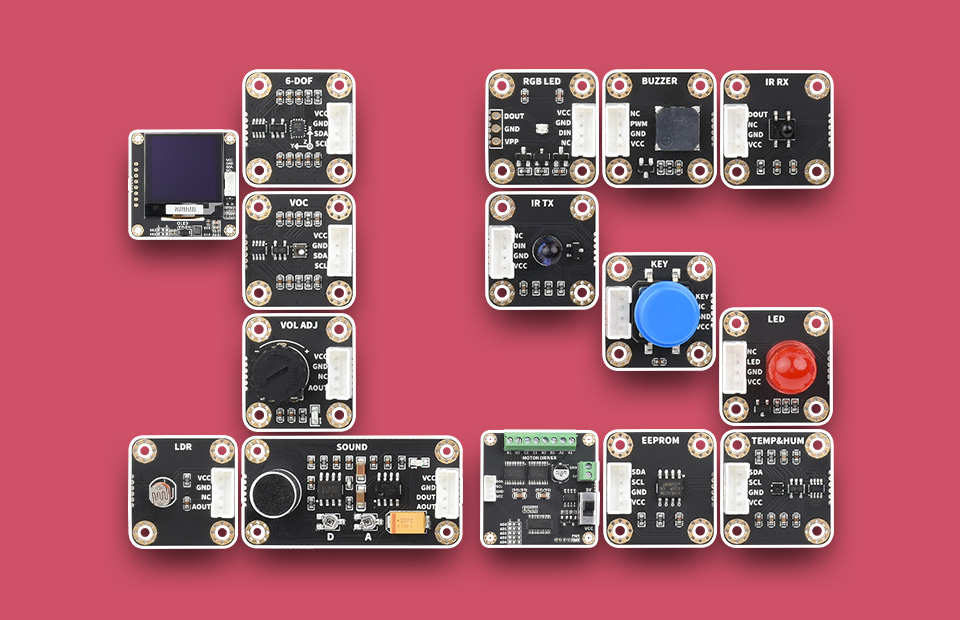

Pico Expansion Board + 15 Common Modules

Comes With Relevant Resources And Tutorials To Help You Get Started Quickly

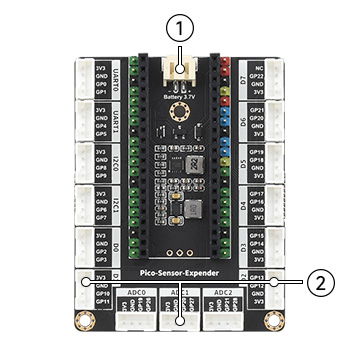

Pico-Sensor-Expender

① Onboard PH2.0 header for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time.
② Onboard PH2.0 4PIN headers for connecting modules

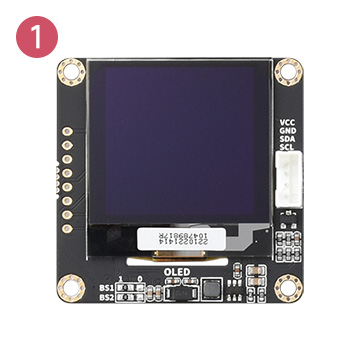

1.5inch OLED Module

• Built in controller: SSD1327
• Resolution: 128×128
• 16 gray scale display
• I2C and SPI communication, switchable via onboard BS1 and BS2 resistors

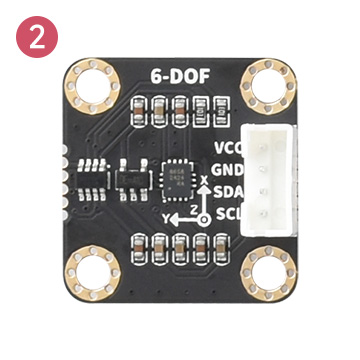

6-Axis Attitude Sensor

• Onboard QMI8658C (3-axis accelerometer, 3-axis gyroscope), for detecting motion and orientation
• 16-bit resolution for both accelerometer and gyroscope

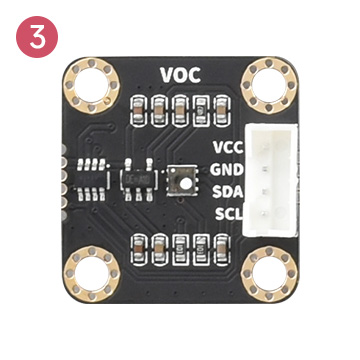

VOC Sensor

• Onboard SGP40 digital VOC gas sensor for air quality detection
• Measurement range: 0~1000ppm ethanol equivalents
• Communication interface: I2C (constant address: 0x59)
• Operating voltage: 3.3V/5V

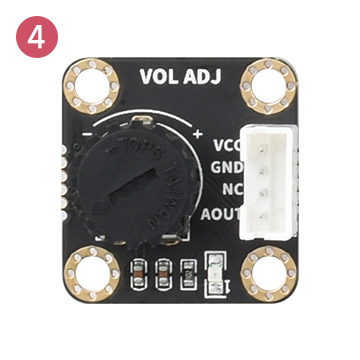

Potentiometer Module

Adjustable voltage output, after the output voltage exceeds the LED conduction voltage, the LED brightness will increase with voltage

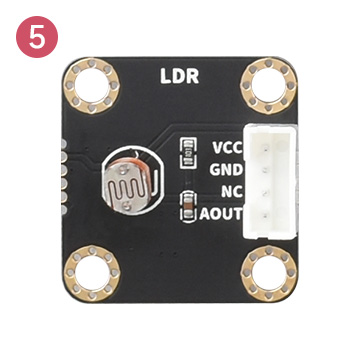

Photoresistor Module

For detecting the ambient light brightness, the output voltage will decrease as the brightness increases

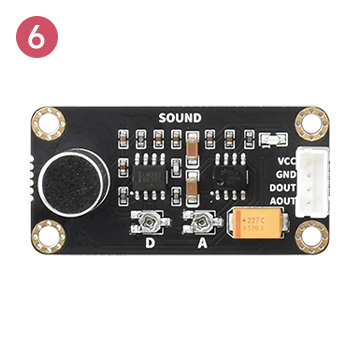

Sound Sensor Module

For converting the sound signal into electrical signal, which is amplified through operational amplifier and then inputted to the comparator, providing analog voltage output and digital output respectively. Adjustable output amplitude via potentiometer A and digital interface trigger voltage via potentiometer D.

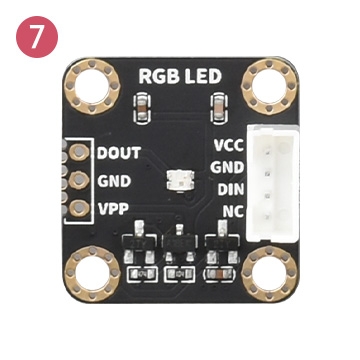

RGB LED Module

• Built in controller: WS2812B
• Brightness: 256 levels adjustable
• Color depth: 24 bits (R / G / B 8-bit each color, can be combined to 16777216 colors)

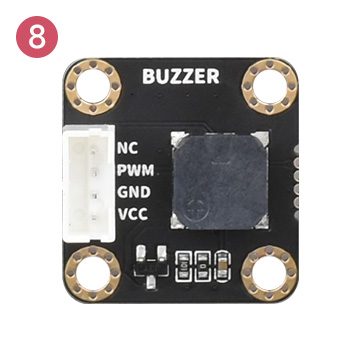

Buzzer Module

Onboard passive buzzer, outputs different sounds according to the different frequencies of the electrical signal.

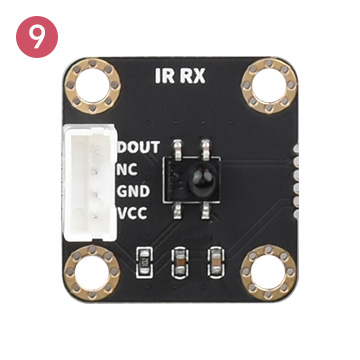

IR Receiver Module

Onboard IRM-H638T/TR2 for receiving infrared remote control signal

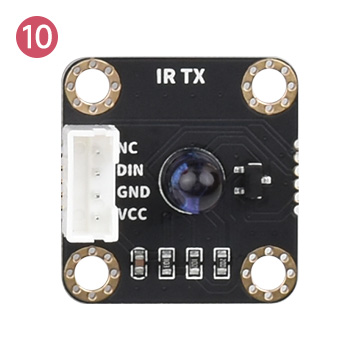

IR Transmitter Module

Onboard TSAL6400 for transmitting infrared remote control signals, with the infrared light wavelength of 940nm.

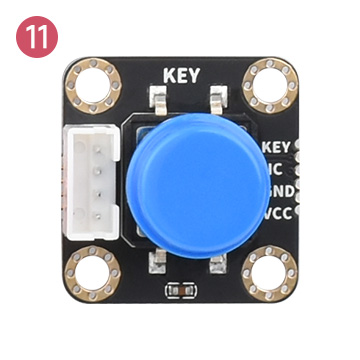

Button Module

Onboard 12×12mm button, for human-computer interaction

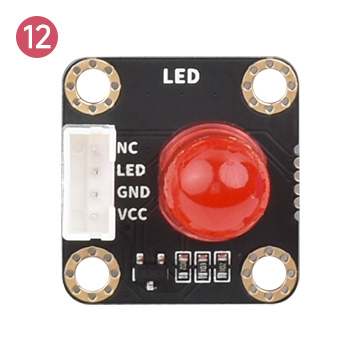

LED Module

Onboard 10mm LED with soft light, for status indication

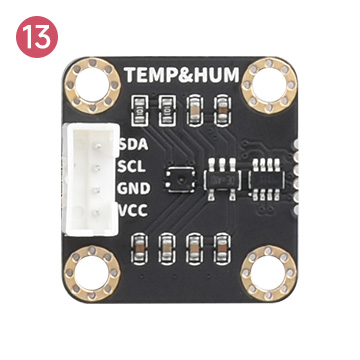

Temperature/Humidity Module

Onboard SHTC3 chip supports measuring 0 to 100% relative humidity and -40°C to 125°C temperature, with a typical measurement accuracy of ±2% relative humidity and ±0.2°C

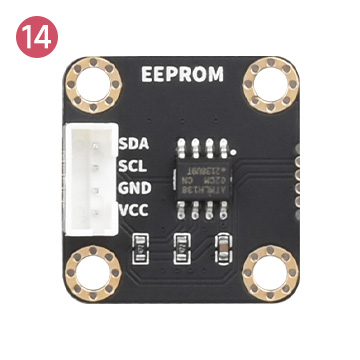

EEPROM Module

Onboard AT24C04 chip for preserving 2Kbit of data when powered down

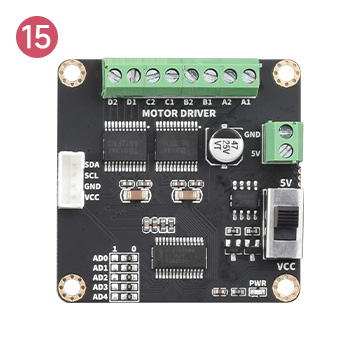

Motor Driver Module

• Onboard PCA9685 chip, can output 12-bit hardware PWM to control motor speed
• Onboard TB6612FNG dual H-bridge motor driver chip, high efficiency, not easy to heat
• logic voltage: 3.3V

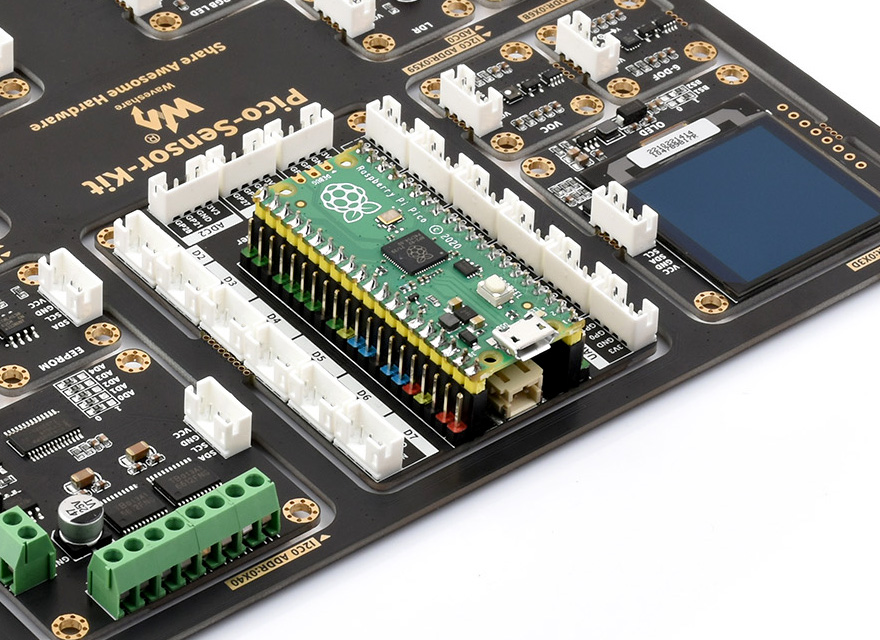

All-In-One Design, Out Of The Box

All Modules Are Connected To Pico Via PCB Castellated Holes, No Soldering Or Wiring Required, Or Can Be Separated To Use Independently

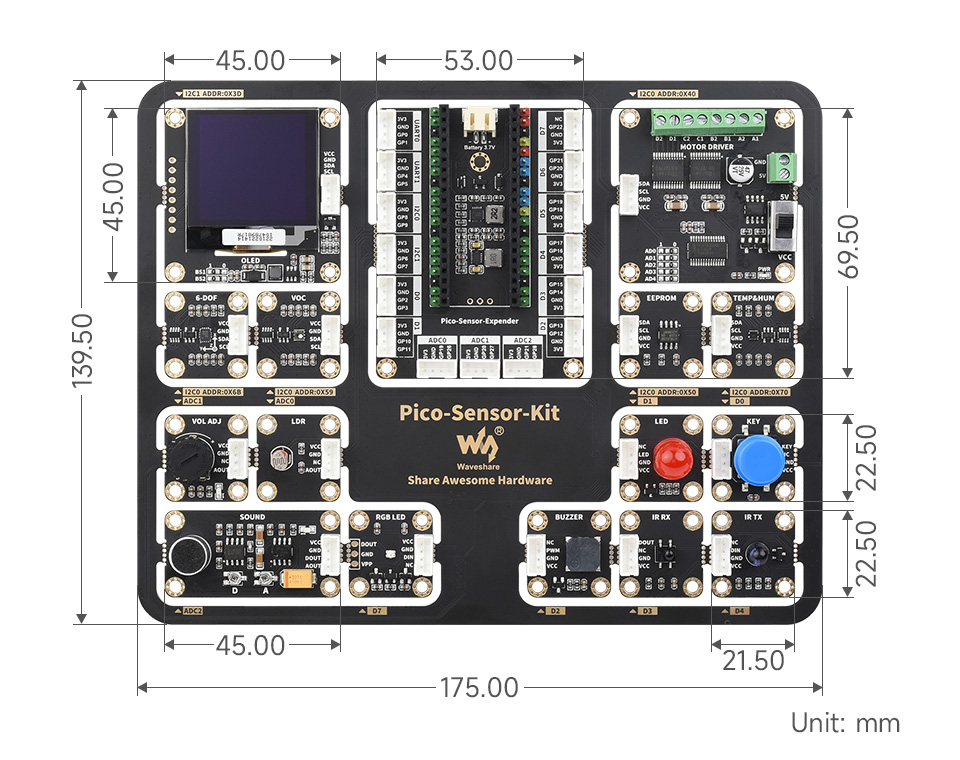

Outline Dimensions

What's in the box?

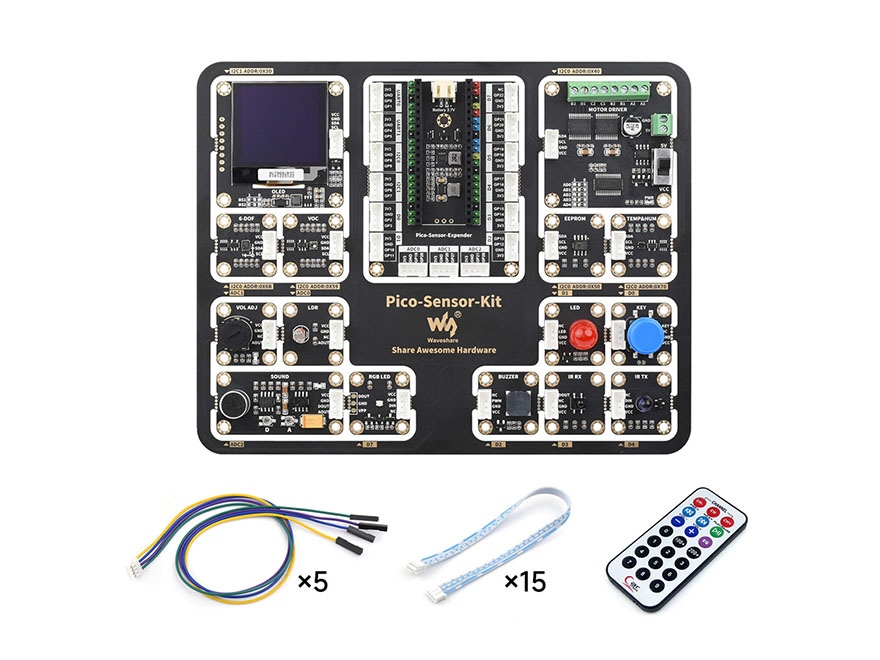

1 x Pico-Sensor-Kit-B
1 x IR remote controller
15 x PH2.0 dual-plug 4PIN cable
5 x PH2.04PIN cable

You will also need...

Raspberry Pi Pico


Resources

Wiki: www.waveshare.com/wiki/Pico-Sensor-Kit-B

• Power Source: 220-240V/AC
• Power Frequency: 50Hz
• Rated Current: 10A

• Medium weight string knit glove
• Cotton/polyester blend
• Select PVC dots on palm (large only) or both sides for superior grip
• PVC on both sides is ambidextrous glove
• Natural white
• Knit wrist

• Dual heater up to 10w
• fits 7mm to 7.55mm glue sticks
• Ergonomic trigger fitting
• glue holder & stand

• 0-Point Phillips
• 1-Point Phillips
• 1.4mm Flathead
• 2.0mm Flathead
• 2.4mm Flathead
• 3.0mm Flathead

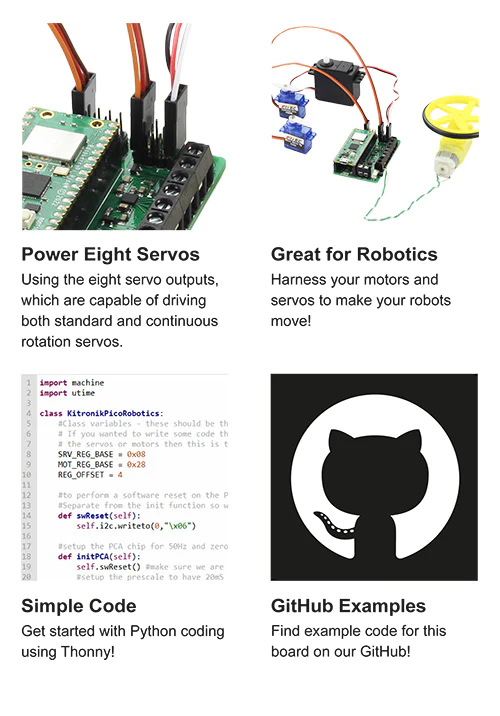

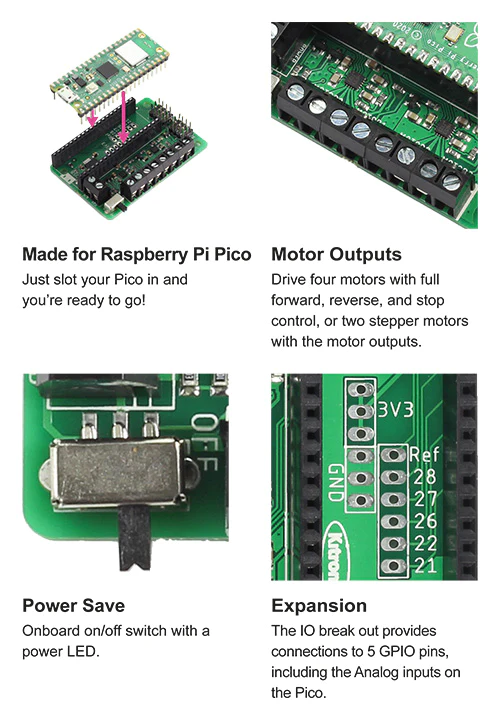

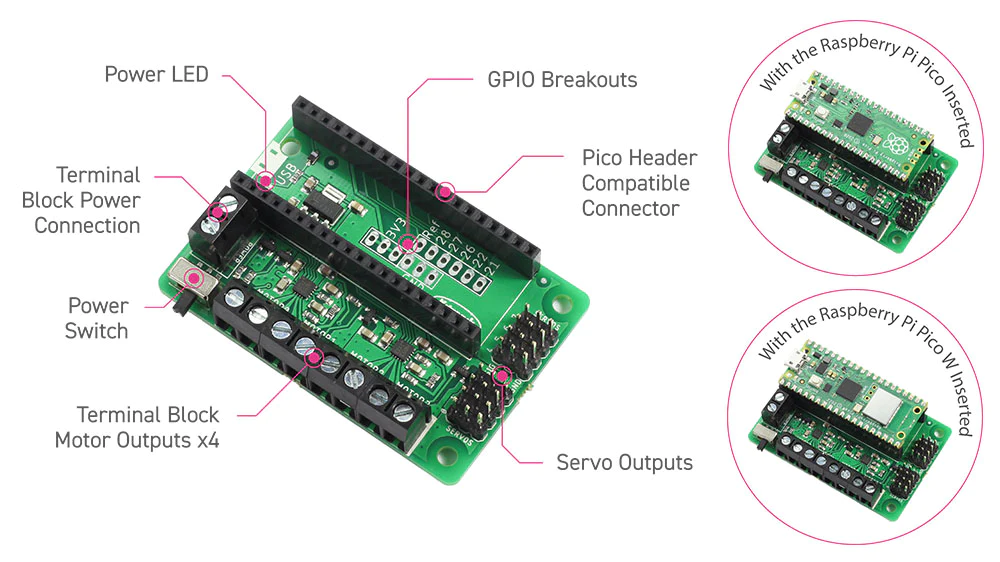

Make the RiPi Pico the hub of your next robot/buggy project with The Kitronik Simply Robotics Board for Raspberry Pi Pico.

The Kitronik Simply Robotics Board for Raspberry Pi Pico features 2 Dual H-Bridge Motor Driver ICs (capable of driving 2 brushed motors or 1 stepper motor) and 8 servo outputs (capable of driving standard and continuous rotation servos), all controlled from a Raspberry Pi Pico. The Raspberry Pi Pico is not included, a Pico with pre-soldered pin headers can be obtained separately here.

The Motor Driver ICs are capable of up to 1A per channel and can drive a variety of small motors, such as hobby motors and more. They feature built-in protection for overcurrent, which can be reset by power cycling the board. The board features standard 3-pin servo connectors which allow for servos to be plugged straight in without the need for additional adaptors or soldering.

The IO breakout provides connections to 5 GPIO pins, including the Analogue inputs on the Pico. These IO points allow input devices, for example, sensors, or output devices, such as ZIP LEDs, to be added to the board. The board also features 3 x holes for mounting the board to a surface or custom enclosure, the mounting holes are 3.3mm in diameter (M3 clearance).

Power is provided via a terminal block. The supply is controlled by an on/off power switch to the board. There is a green LED to indicate when the board is turned on. The board then produces a regulated supply which is fed into the connected Pico, removing the need to power the Pico separately. There are 3V and GND pins broken out on the additional header, which means external devices can also be powered.

Note:

• This board is not supplied with a Raspberry Pi Pico, a Pico with pre-soldered pin headers can be obtained separately here.
• This board is capable of continuous use at high currents. During such use, it may become hot.

Features

• Control up 8 servos and two motors (or a stepper motor) simultaneously with the Raspberry Pi Pico.
• Ample IO for advanced robotics projects.
• The onboard servo connectors are standard 3-pin servo connectors.
• The board also features 5 GPIO pins, including the Analogue inputs on the Pico. These IO points allow input devices, for example, sensors, or output devices, such as ZIP LEDs.
• Power is provided via a terminal block power input connector, with an on/off switch and power status LED.
• The Simply Robotics board will power all of the attached servos and provide the attached Pico with a regulated 3V supply.
• Additionally, there is built-in reverse polarity protection.
• Kitronik has produced example MicroPython class and example code showing its use.

Dimensions

• Length: 63mm.
• Width: 42mm.
• Max Height: 10mm.
• Mounting Holes Diameter: 3.3mm (M3)

What's in the box?

You will also need....

Resources

• MicroPython module and sample code GitHub Repo.
• Datasheet.

Whether you're looking to decorate your home or add ambiance to a special event, this lamp is the perfect solution.

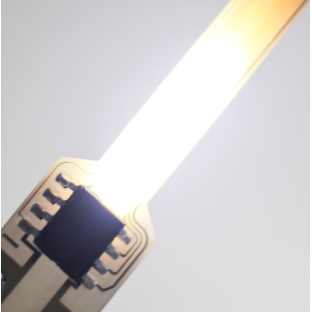

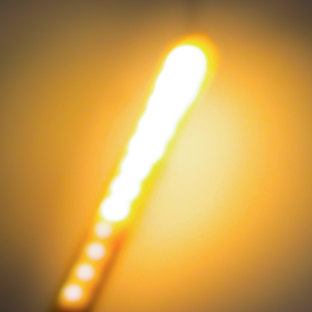

The DC 3V Cob Meteor Shower Lamp is a stunning LED filament lamp with a unique meteor shower design that's sure to impress.
This lamp emits a warm 2200k light. The lamp is easy to use with a 3V power supply


Dimensions



What's in the box?

1 x 3V Dc Meteor Led Filament

You might also need...

If you do not already have a power supply you can use one of the below in order to power your LED

3V 2xAA Transparent Battery Box with Crocodile Clips and Switch
         OR
3V 2xAA Black Battery Box with Crocodile Clips and Switch

You will find our selection of batteries here

Whether you're looking to decorate your home or add ambiance to a special event, this lamp is the perfect solution.

The DC 3V Cob Meteor Shower Lamp is a stunning LED filament lamp with a unique meteor shower design that's sure to impress.
This lamp emits a warm 2200k light. The lamp is easy to use with a 3V power supply


Dimensions



What's in the box?

1 x 3V Dc Meteor Led Filament

You might also need...

If you do not already have a power supply you can use one of the below in order to power your LED

3V 2xAA Transparent Battery Box with Crocodile Clips and Switch
         OR
3V 2xAA Black Battery Box with Crocodile Clips and Switch

You will find our selection of batteries here

Whether you're looking to decorate your home or add ambiance to a special event, this lamp is the perfect solution.

The DC 3V Cob Meteor Shower Lamp is a stunning LED filament lamp with a unique meteor shower design that's sure to impress.
This lamp emits a warm 2200k light. The lamp is easy to use with a 3V power supply


Dimensions



What's in the box?

1 x 3V Dc Meteor Led Filament

You might also need...

If you do not already have a power supply you can use one of the below in order to power your LED

3V 2xAA Transparent Battery Box with Crocodile Clips and Switch
         OR
3V 2xAA Black Battery Box with Crocodile Clips and Switch

You will find our selection of batteries here

• Plug Top for use in South Africa
• Surge protection
• 16A
• Wiring Check

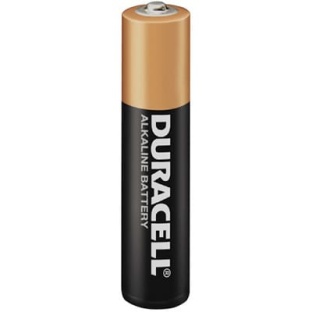

Duracell Plus Power batteries – long lasting power guaranteed. These multi-purpose batteries are ideal for reliably powering everyday devices. Duracell Plus Power batteries give you the freedom to enjoy the use of your appliances by giving you a product you can rely on. The Duracell Plus Power batteries are best used when you are looking for reliable, long-lasting power in your every-day devices such as motorized toys, flashlights, portable games consoles, remote controls, CD players, etc. Duralock technology keeps unused Duracell batteries fresh and powered for up to 10 years in ambient storage.

Features

- Long-lasting power, guaranteed
- Duralock
- Leakage prevention
- Suitable for everyday devices
- Long-lasting power, guaranteed
- 1.5V Alkaline

What's in the box?

1 x AAA Duracell battery

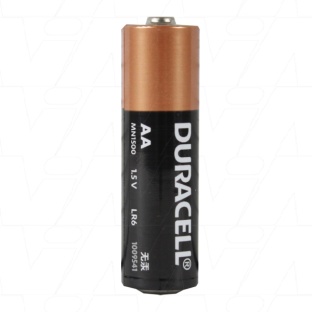

Duracell Plus Power batteries – long lasting power guaranteed. These multi-purpose batteries are ideal for reliably powering everyday devices. Duracell Plus Power batteries give you the freedom to enjoy the use of your appliances by giving you a product you can rely on. The Duracell Plus Power batteries are best used when you are looking for reliable, long-lasting power in your every-day devices such as motorized toys, flashlights, portable games consoles, remote controls, CD players, etc. Duralock technology keeps unused Duracell batteries fresh and powered for up to 10 years in ambient storage.

• Long-lasting power, guaranteed
• Duralock
• Leakage prevention
• Suitable for everyday devices
• Long-lasting power, guaranteed
• 1.5V Alkaline



What's in the box?

1 x AA Duracell battery

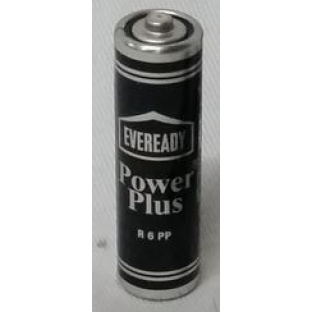

• AA SIZE
• ZINC BATTERY
• POWERPLUS SILVER

What's in the box?

1 x AA Eveready battery
