Compatible with USB 2.0, it provides full isolation at 12 Mbps data rates. With isolation of 1500V, it has no external power supply, no driver required.
Features
- Driver-free, easy to use to use.
- Support USB full speed 12Mbps does not support pure high speed equipment.
- Support USB control transfer, batch transfer, interrupt transfer, sync/isochronous transfer.
Specifications
- ADUM3160 isolation voltage: 2500V
- Power module isolation voltage: 1500V
- Power supply: taken from the computer host USB port
- Operating environment: -40 °C to 85 °C

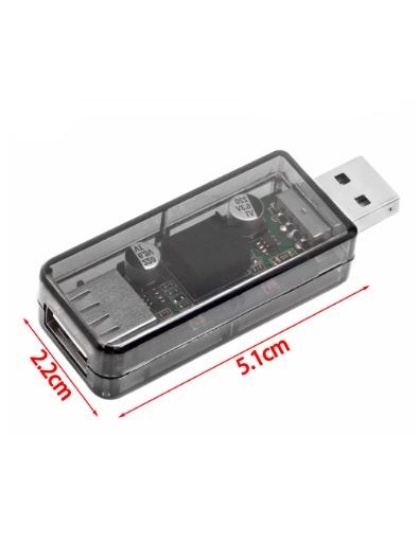

- Dimensions: 15mm x 25mm x 66mm
What's in the box?

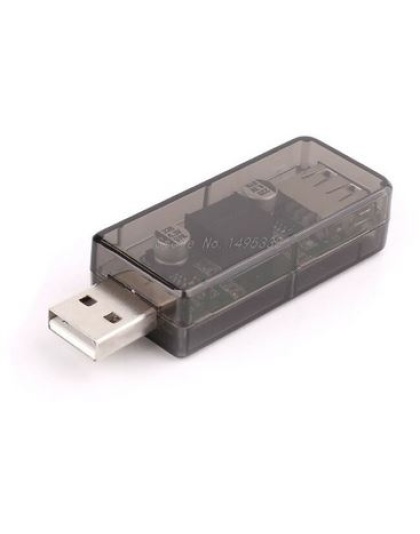

1 x USB A male To USB A female Isolator dongle
- Availability: 23 In Stock
- Model: usb isolator
-
